Photographic Overview

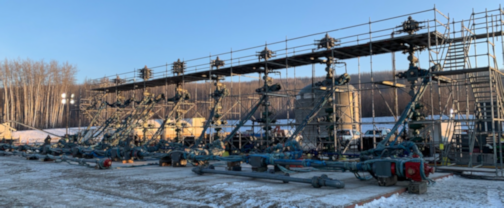

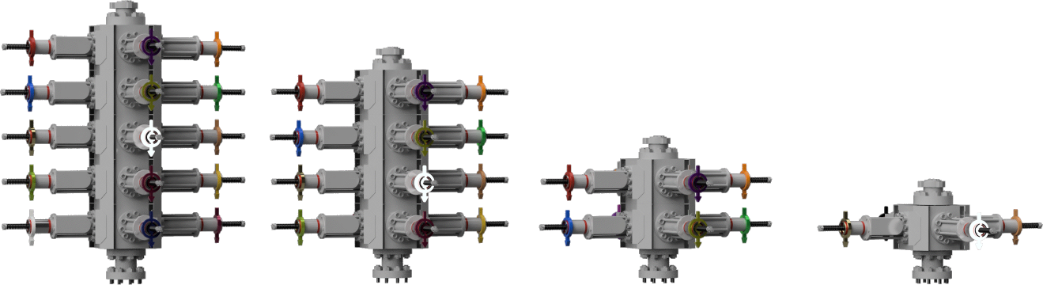

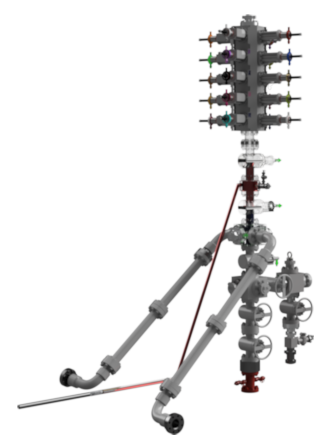

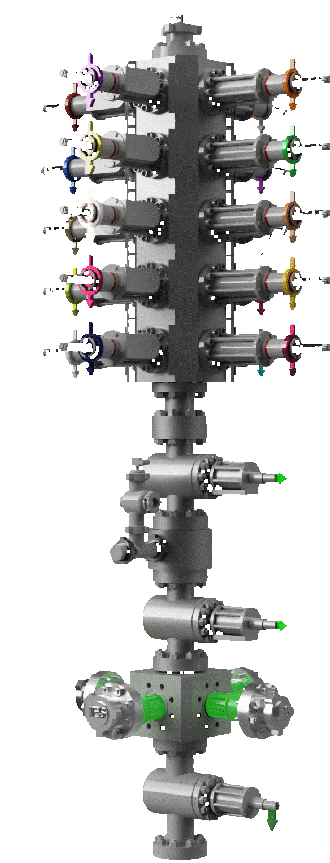

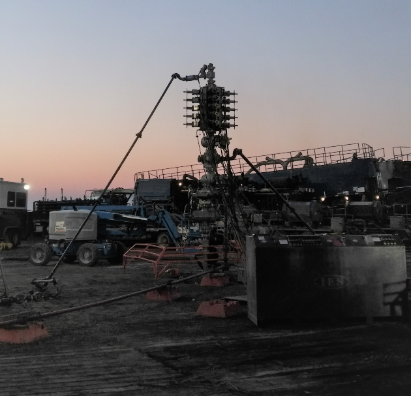

The XL Series Ball Launcher features unique radial ball storage and a full open main axial bore. The quad storage design results in a very low, compact and efficient unit. XL series ball launchers are capable of deploying balls from 1/2" (12.7mm) up to 4.75" (120.6mm).

NAME	XL21	XL17	XL5 / XL5B		XLQ / XLBQ
Size	4 1/16"	4 1/16"	4 1/16"	5 1/8"	4 1/16"	5 1/8"
Rated Pressure	10K/15K	10K/15K	10K/15K	10K/15K	10K/15K	10K/15K
Height	48 3/8"	39"	19 1/2"	27"	10" 1/2"	14" 13/16"
Ball Size	3 3/4"	3 3/4"	3 3/4"	4 3/4"	3 3/4"	4 3/4"
Stages	21	17	9	9	5	5

Features	Details
Compact - Easy Access	Low profile, shorter ball travel to dry launch stack
Color Coded Arrow Indicators	Every ball cartridge is color coded and numbered to ensure correct ball is deployed Arrow indicators are visible from the control panel
Unique Cartridge Alignment	Cartridge follows a track which keeps the cartridge aligned perfectly with the main bore
Positive Ball Displacement	Dry launch block with pumper to displace balls
Dry Storage 15K WP	Storage area capable of 15K for safer operation
Loading Options With Nitrogen Displacement	Packer balls can be activated as nitrogen is pumped through bore continually
Universal Cup Size	All cartridge cups are teflon coated and sized to accommodate ball size in all cartridges
Hydraulic Panel Lock	Hydraulic control panel features a lock out that prevents accidental activation of the injector cartridges
Hydraulic Counter Flow Valves	Each cartridge hydraulic cylinder is equipped with a counter flow valve that requires a minimum of 500 PSI hydraulic pressure to initiate ball injection
(ESV) Remote Valve	ESV is operated from the main control panel and features fail safe open
15WP Pressure Pumper Units	IES pressure pumpers efficiently displace the packer balls

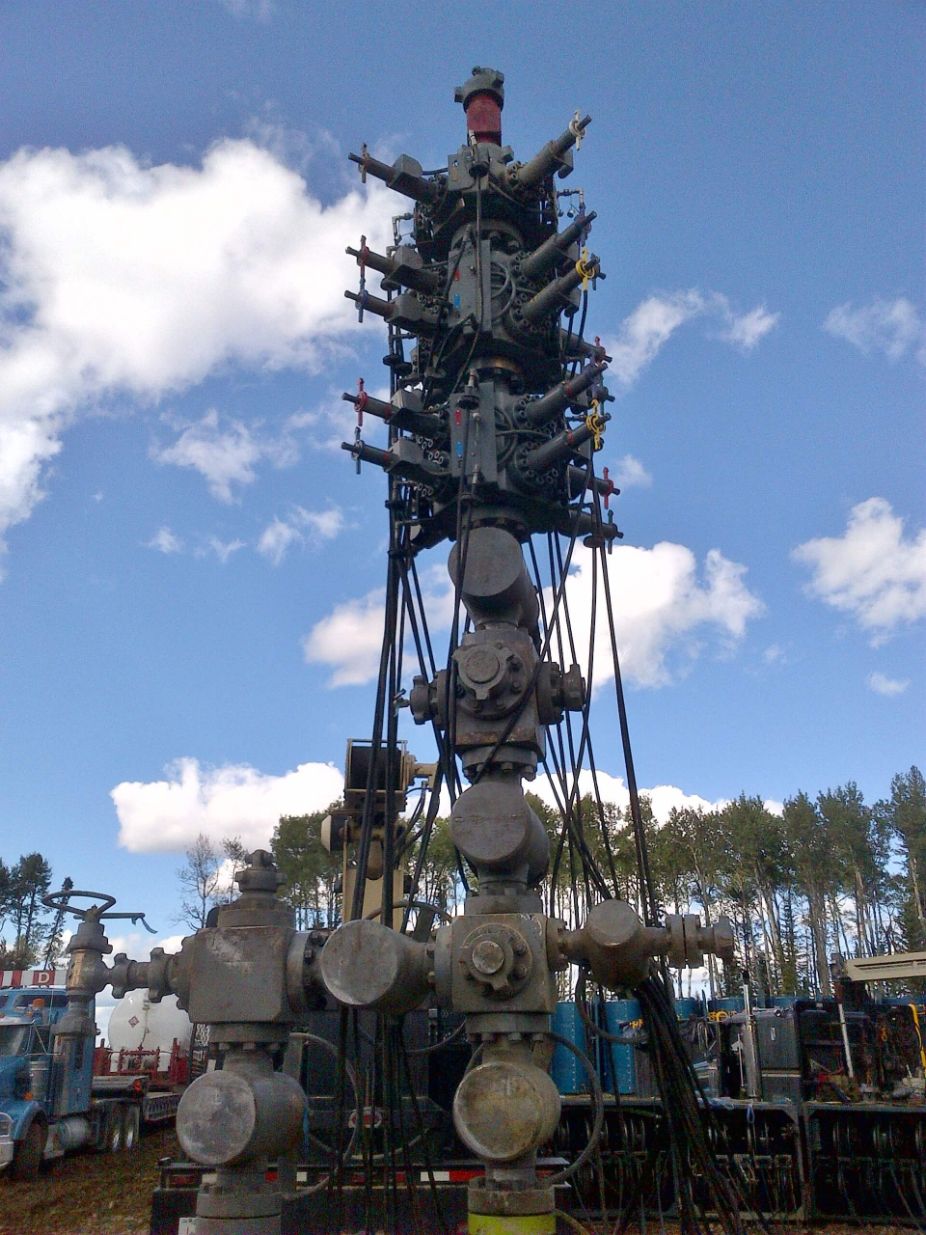

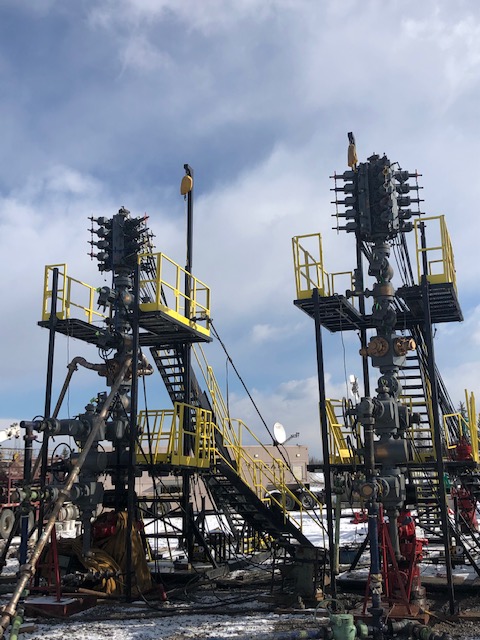

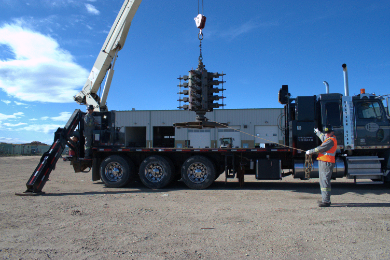

XL LAUNCHERS ARE CAPABLE OF BEING STACKED FOR ENDLESS POSSIBILITIES AND STAGES
