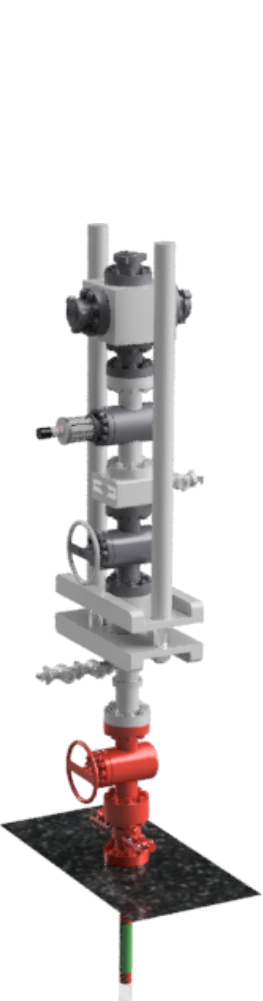

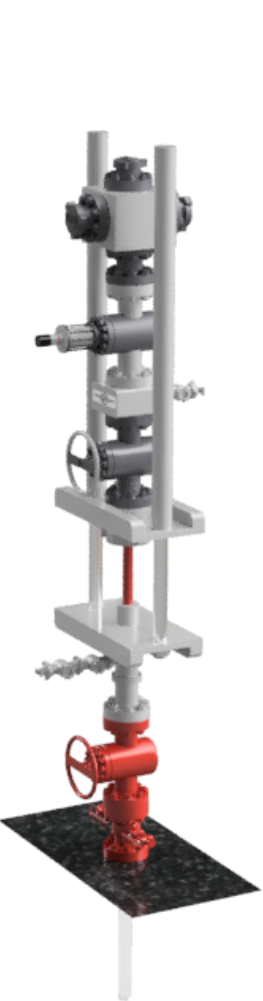

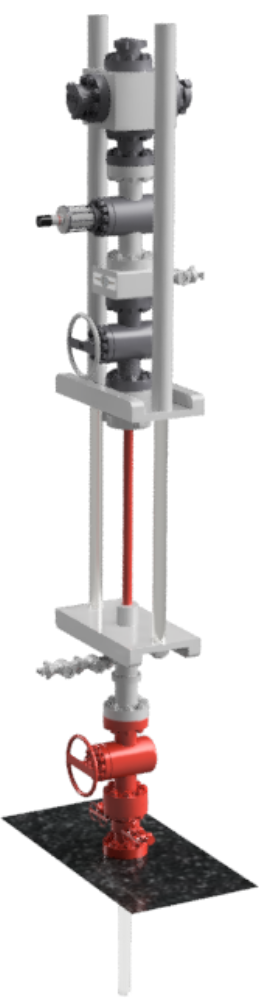

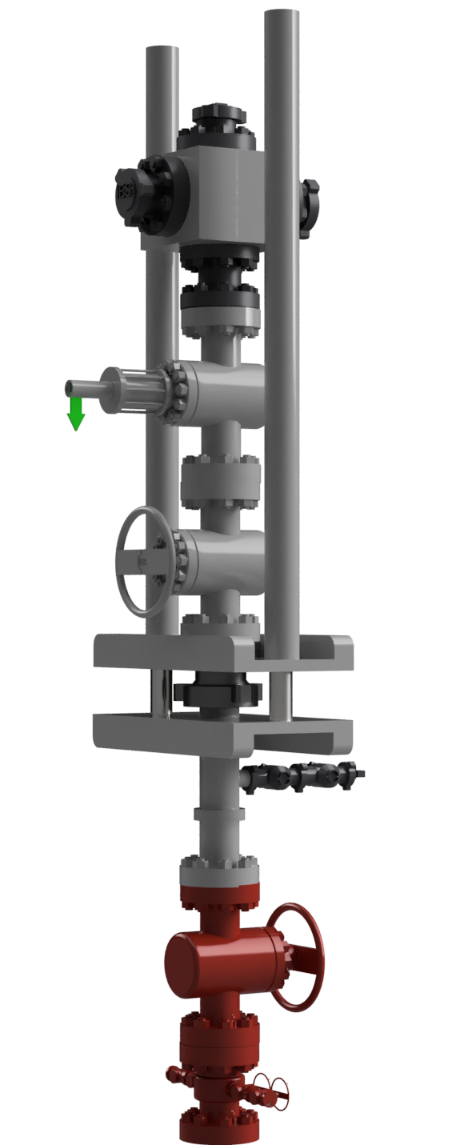

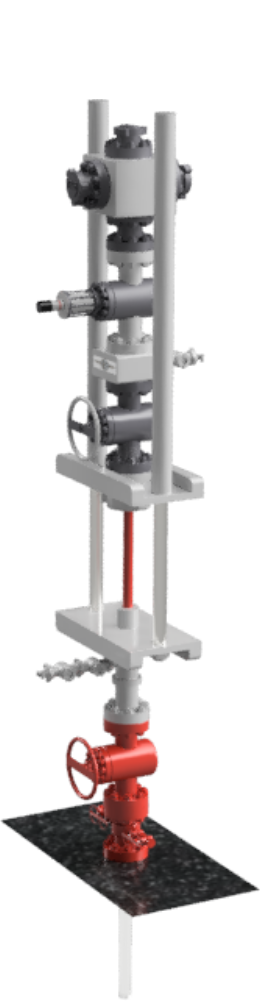

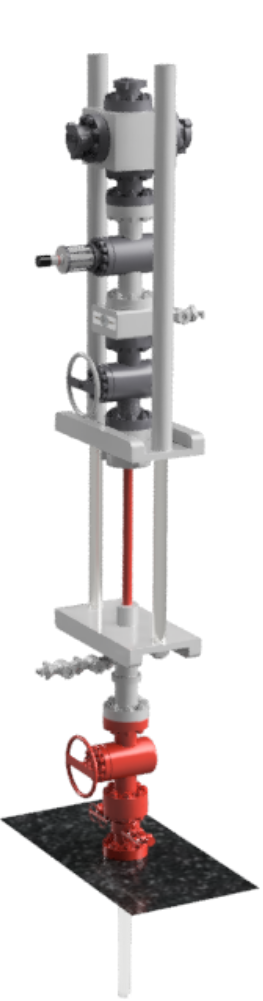

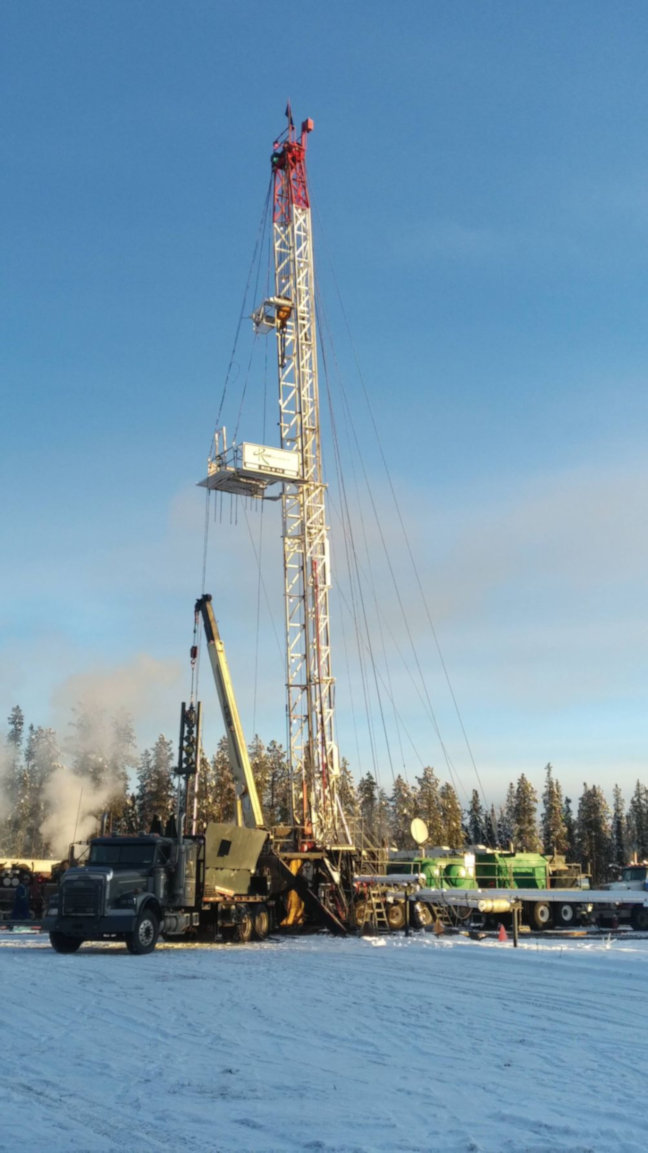

Photographic Overview

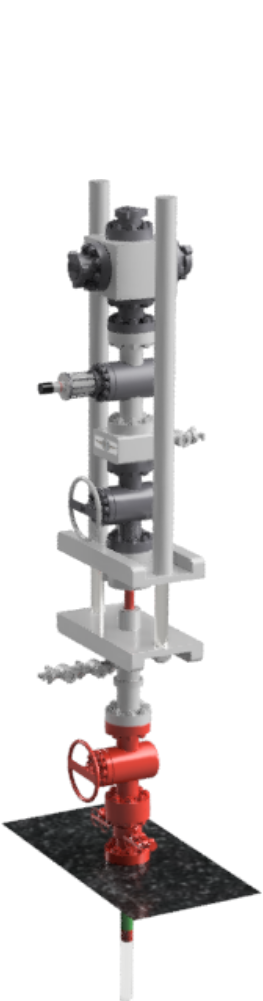

The Isolation Tool by-passes, and protects the existing production wellhead and/or surface wellhead equipment from frac treatment pressures, erosion and corrosive fluids. By isolating the surface wellhead equipment, the Isolation Tool increases the pumping pressure capability to the down hole tubular strength.

Features	Details
Fail Safe Remote Valve (ESV) Features a Unique Open/Close Indicator	Hydraulically operated by remote control at a safe distance with a unique hydraulic accumulator system
True Bore and Innovative Design	Precision machining and quality control ensures uniform flow of frac fluid and minimal erosion
Patented Seal Assembly Readily Conforms To Desired Tubular Sealing Area	The unique seals have proven to be extremely reliable and efficient in the most adverse conditions
Unit is Certified and Manufactured to API Specifications	Pressure rating 15K (103.5 MPa) WP, fully conforms to NACE sour gas requirements. Maximum flow rates are confirmed depending on job parameters. Available in 84", 96" and 124" cylinder strokes
Versatile Unit Will Adapt to all Tubing and Casing Sizes and Weights	The unit can be quickly converted to isolate in an assortment of tubulars from 2 3/8" to 7"
Tell Tale Vent	Confirms a good makeup seal between the Isolation tool seal and tubular that protects the surface equipment from being subjected to over pressure.

Isolation Equipment Services Inc.
Toll Free: Red Deer 1-866-342-0032 Grande Prairie 1-877-402-3066
Isolation Equipment Services - All Rights Reserved

Pressure Rating	15K WP
Pumping Rates	up to 75 BPM (depending on tubular size and sand volume
Injection and Extraction Pressures	Up to 7500psi Well Standing Pressure
Injection Hydraulic Pressure	Up to 5000psi
Sour Gas	Nace rating

Technical Specifications
