Technical Specifications

FEATURES	DETAILS
Dual Swivel Entry Design	Opposing fluids reduce erosion
Swivel Flanged Connections	Reliable, flexible for ease of assembly. Eliminates side load on the Wellhead
Screened Buffalo Heads	Prevents damaging debris from entering the wellbore and promotes smoother frac flow
Light Weight Sleek design	Ease of assembly and reduced cartage
Versatile	Ease of adjustment in tight footprint areas
Remote Valve Large Green Indicators	Confirms desired valve function

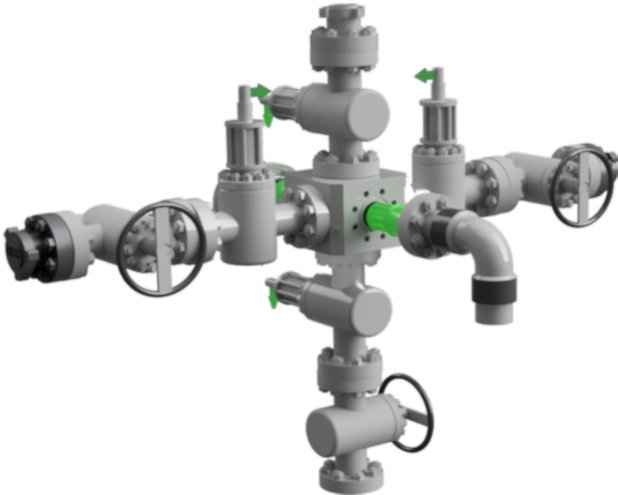

The IES Plug and Perf manifold system is designed to connect multi pad wells during pumping operations. As one well stage is being stimulated, the next well is E-line serviced. By isolating each well as required, the process is repeated back and forth until all desired stages are completed.

Isolation Equipment Services Inc.
Toll Free: Red Deer 1-866-342-0032 Grande Prairie 1-877-402-3066
Isolation Equipment Services - All Rights Reserved

• 15,000 psi (103.4 MPa) max working pressure
• 5 1/8 API Flanged end connections
• 4 1/16 API Flanged swivel standing iron
• Maximum frac flow rates up to 16 m3/min
• Velocity reduction due to debris screens
• Reduction of erosion in fluid mixing area
• Unique TY Block promotes minimal erosion

The IES dual swivel flanged entry design features minimal erosion with opposing fluids and swivel sweeps promoting smoother frac flow versus abrupt single entry angle changes. IES standing iron swivel flanged connections are flexible and conform for ease of assembly, meaning there are no rigid flange connections that require perfect alignment to assemble. In addition, the IES debris screen not only greatly reduces damaging debris from entering the well bore, they also help promote smoother frac flow down the well bore

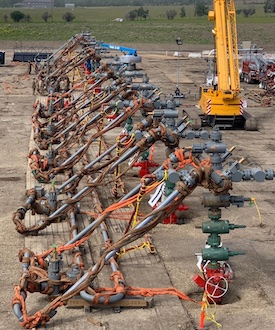

Frac Manifold Brochure
